All-welded Plate Type Heat Exchanger “XP Series”

XP Series

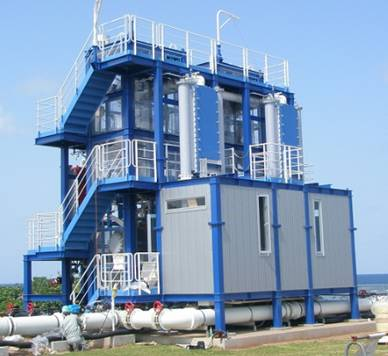

XP Series are plate type heat exchangers uniquely developed based on an entirely new concept aimed at realizing Ocean Thermal Energy Conversion systems, which is our business goal, appropriate for high temperature and pressure use that does not need gaskets.

Only in Japanese.

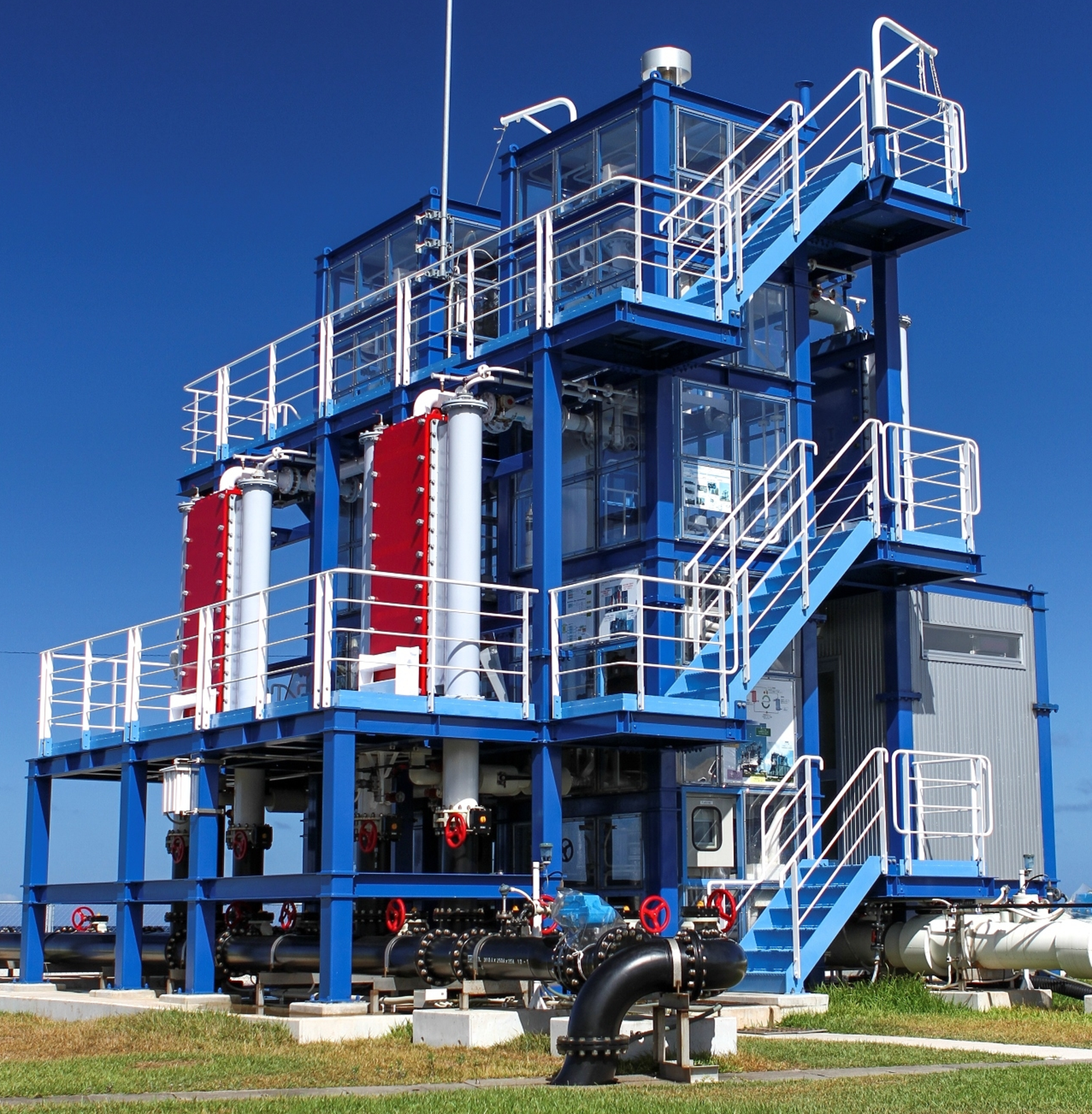

Evaporator for OTEC

Condenser for OTEC





All-Welded Plate Type Heat Exchanger

Representative Example of All-Welded Plate Type Heat Exchanger

Multi-Path Structure

One-Pass Structure


Merits of One-Pass Structure

1. Maximize intervals between maintenance due to fouling-resistant operating conditions.

2. Reduction of required pump power by reducing pressure loss.

3. Improved heat  recovery by reduced pinching temperature.


Developing New Application through Preliminary Experiments

It can be used as reboiler or condenser at distillation towers and at chemical plant since it can vaporize and condense efficiently with limited pressure loss. Also, the high performance and compactness of the heat exchanger is attracting attention as an alternative to conventional tube type for heat recovery of gas to gas.
For use of XP Series in new operating environments we can optimize full-scale equipment by obtaining operational data through small-scale preliminary experiments.

Please do not hesitate to consult us.





It can be cleaned without disassembling piping or heat exchanger.




Characteristics

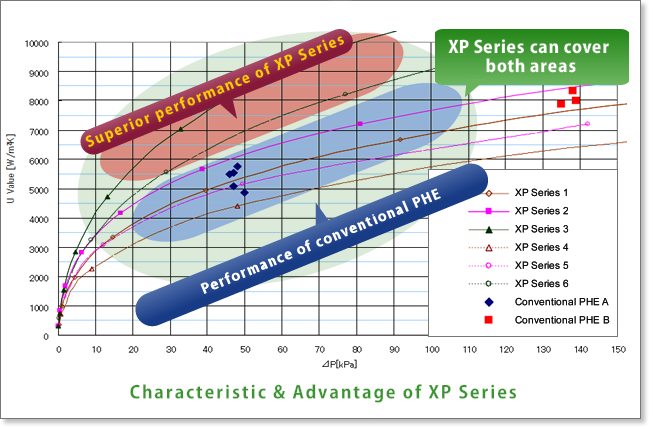

1. Low-pressure Loss / High Heat Transfer Efficiency

The XP Series has a unique plate pattern and structure that decreases unnecessary flow turbulence, which does not relate to heat transfer performance and achieves low-pressure loss.

XP Series can drastically reduce pressure loss  from fluid velocity compared to conventional  plate type heat exchangers (PHE),  therefore, within acceptable pressure loss, it is possible to design for faster flow rate than that of conventional PHE. The faster flow rates allow higher heat transfer performance than could be obtained ever before.




2. Space Saving

Space for new equipment can be made by replacing shell and tube type heat exchangers with XP Series, since our heat exchangers are far more compact for the same heat transfer load.

Especially for processes involving gas, the space saving effect will be amazing in some areas.

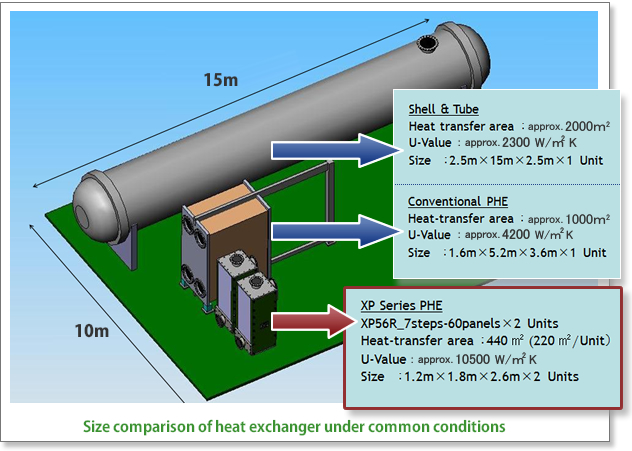

Size comparison under the following design conditions:

  Temperature

Flow Rate

m3/hr

In Out
High Temperature Fluid Fresh water 41 35 3300
Low Temperature Fluid Sea water 30 36 3300
Total Heat Exchanged 23MWt
Pressure Loss 80kPa

*One example. Actual sizes and comparative ratios depend on design conditions.







3. Low Maintenance Cost

XP Series does not use gaskets. They are formed of an all-welded structure.

Basic maintenance work (cleaning) can be done by chemical solution, without the need for disassembly.

As the XP Series do not have internal gaskets, a variety of cleaning solutions can be utilized.

XP Series casings allow the sides of the heat exchanger to be opened allowing cleaning by high pressure jet if needed.




4. High Performance Enables by High Design Flexibility

Our Unique manufacturing technology enables flexibility in regards to length of heat transfer plates and the position and size of inlet and outlet nozzles, allowing you to freely choose a configuration to meet your needs.

We can suggest high performance heat exchangers with the most appropriate flow velocity and flow direction according to your application.

Continuous Press Machine

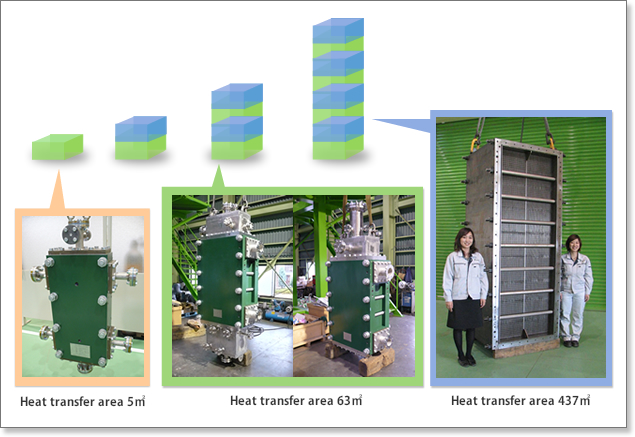

From small scale (5m2 class) To large scale (500m2 class)

Red and blue arrows in the drawing indicate the fluid/gas flows in the heat exchangers.


5. Energy Saving

It is possible to reduce temperature difference at the ends compared to conventional heat exchanger.

If temperature difference at the ends is reduced, the amount of evaporation and condensation can be increased, and input amount of heat against amount of production can be decreased.


6. Design / Evaluation services

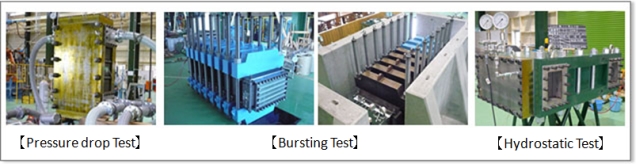

We are constantly researching and developing our heat exchangers through confirmation of  performance by repeated heat transfer experiments using full-size heat exchangers. In this way we make the best low-pressure loss and high-performance heat exchangers.

The heat transfer data gained through our experiments enables us to design the best heat transfer specifications for the customer's service conditions.

We will  quickly consider and share the benefits of optimized heat exchanger design for our customer's requirements.

Applications

Useable Conditions

 Operating Temperature : ~400ºC

 Maximum Operating Pressure : 4MPa

 Maximum Attainment pressure : 30~40MPa



Materials

 Titanium(Gr.1&Gr.2) etc

 SUS316L

 SUS304L

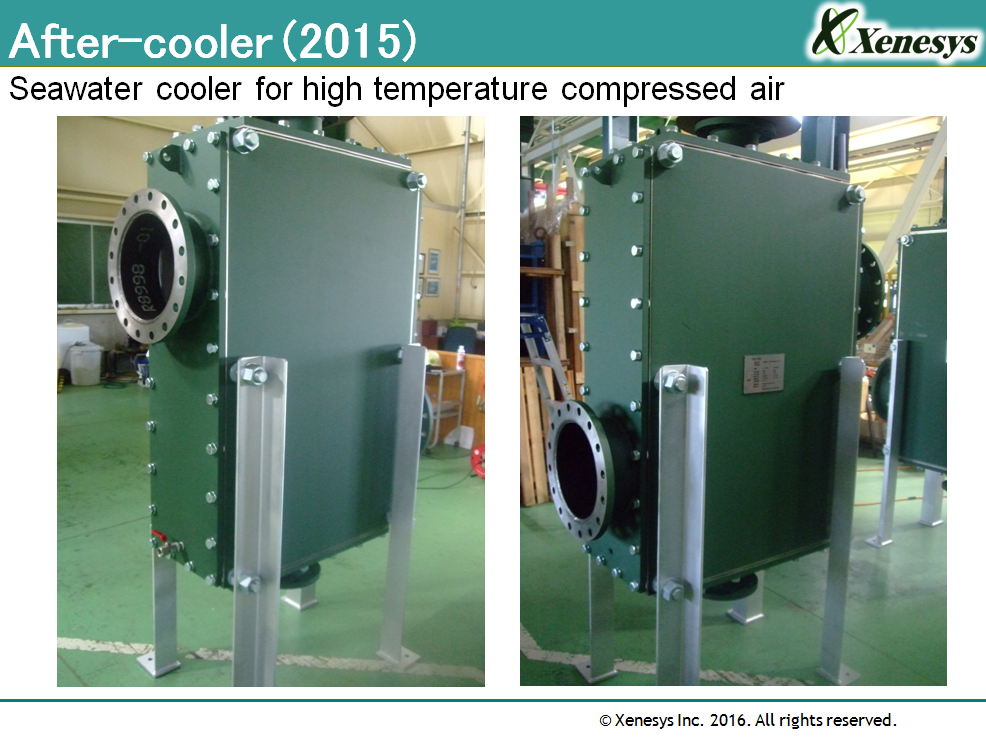

Applications (examples)

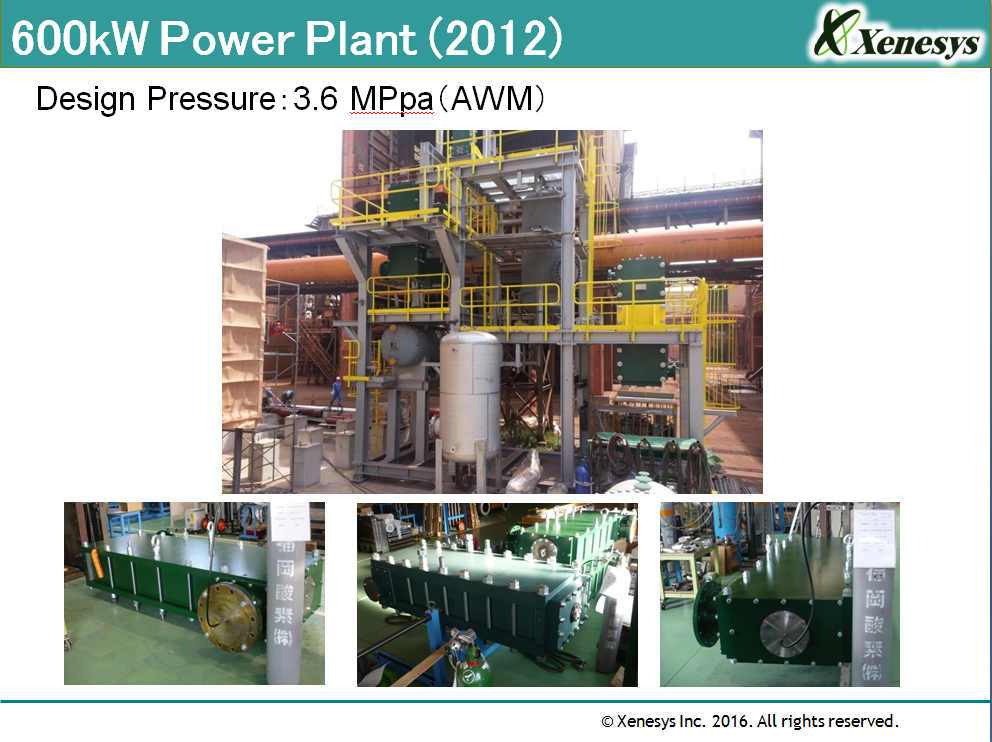

Evaporator, condenser and plate type condenser for power generation plant.

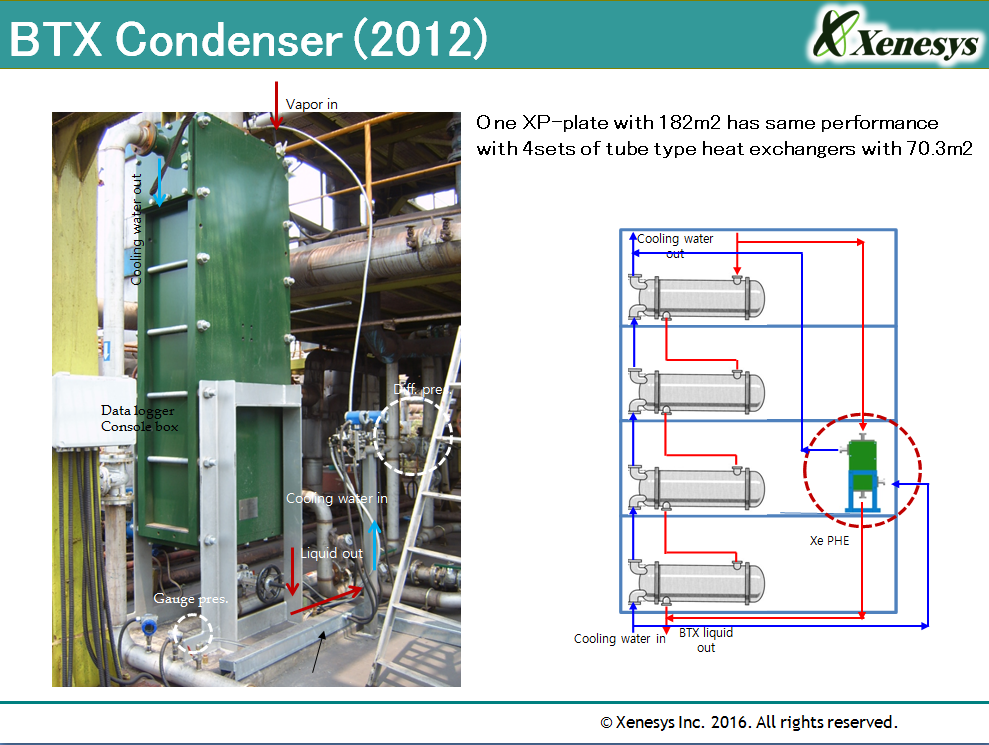

Condenser and reboiler for BTX

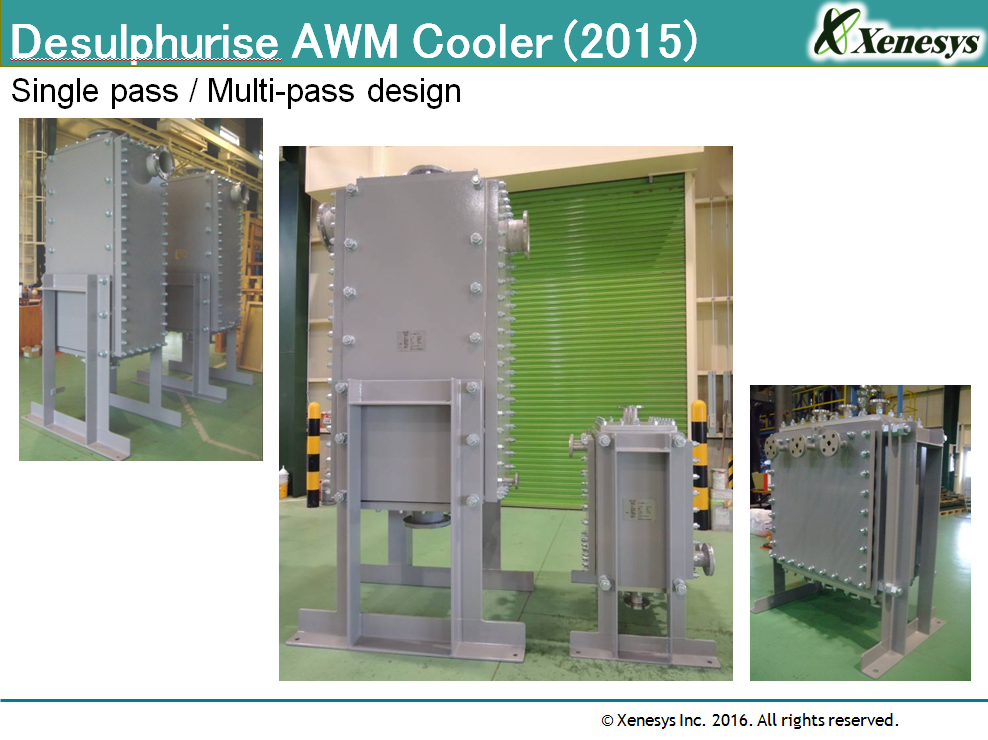

Anhydrous cooler for desulfurization facility

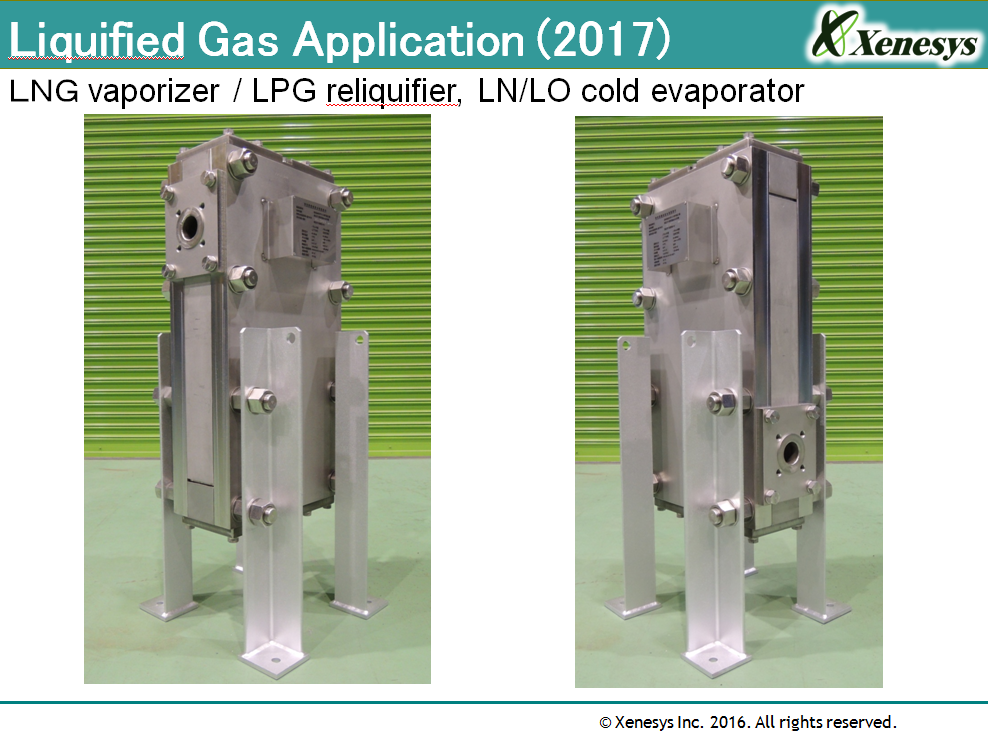

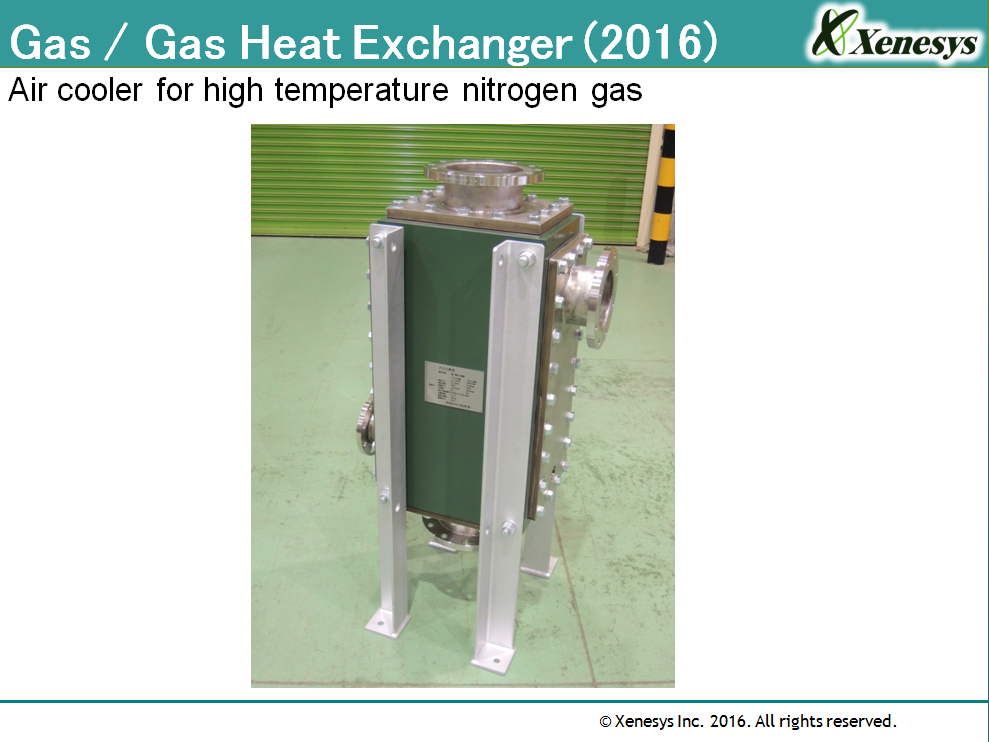

Heat exchanger for gas to gas and gas to liquid

Steam condenser and drain cooler



We can assist you in replacing existing tube type with plate type, including implementing preparatory experiments.





Track Records

詳細はこちら



Law and Regulations

・ASME Section VIII Division 1(U-Stamp) *1

・Industry Safety and Health Act

   (First Class Pressure Vessel, Second Class Pressure Vessel)

・Electricity Business Act

・Various Classification Standard (NK, Lloyd's, DNV GL)

  (*1 Under review)





We will propose the most suitable XP Series to fit your conditions of use.

For Details, Please send the design conditions of your project/site via the "Parameter Sheet"  link below.
